CAST STEEL TEFLON SEAT WELDABLE CONNECTION
Type : L (Angle Form) Y (Straight Through)
Size : 15mm to 300 mm (1/2” to 12”)
Test Pressure : 28kg / cm2 (300 PSIG)
Temp. range : -40 to 120°C
Connections : Socket type
- Easy to install.
- Low Pressure Drop.
- Easy Maintenance
- Light weight and compact
- Eliminates leakage from flanged or Screwed Joints.
- Can accept flow in both direction
- Stainless steel stem.
- Non metallic front & back seating.
- Individual box packing
- No need to change complete seat nut as only
- Teflon can be changed.

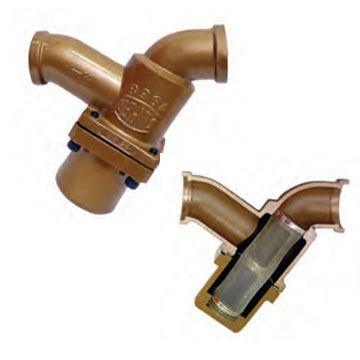

STRAINER SOCKET WELDABLE CONNECTION
Port size: 1/2” - 6” (15mm to 150mm)
- Light weight and compact for easy handling and installation.
- Bodies casted with lost wax casting process.
- These valves are welded directly to the steel piping, eliminating potential leaky flanges or threaded joints.
HAND EXPANSION / NEEDLE REGULATING VALVE
Port size: 1/2” - 2” (15mm to 50mm)
Spindle: Leak and corrosion free stainless steel
HAND EXPANSION / NEEDLE REGULATING VALVE
Port size: 1/2” - 2” (15mm to 50mm)
Spindle: Leak and corrosion free stainless steel
IN LINE CHECK VALVE FLANGED
Port size:1” - 4” (25mm to 100mm)
- Low pressure drop.
- Compact size.
- Prevents back condensation from warm evaporator to cold evaporator.
- Safe working pressure: 400 psig (27 bar).
- Temperature range: -60°F to +240°F ( -51°C to +116°C).
- Closes instantly when flow reversal occurs.
- Valve cone has a teflon tightening ring that renders
- perfect sealing at a minimum closing force.
